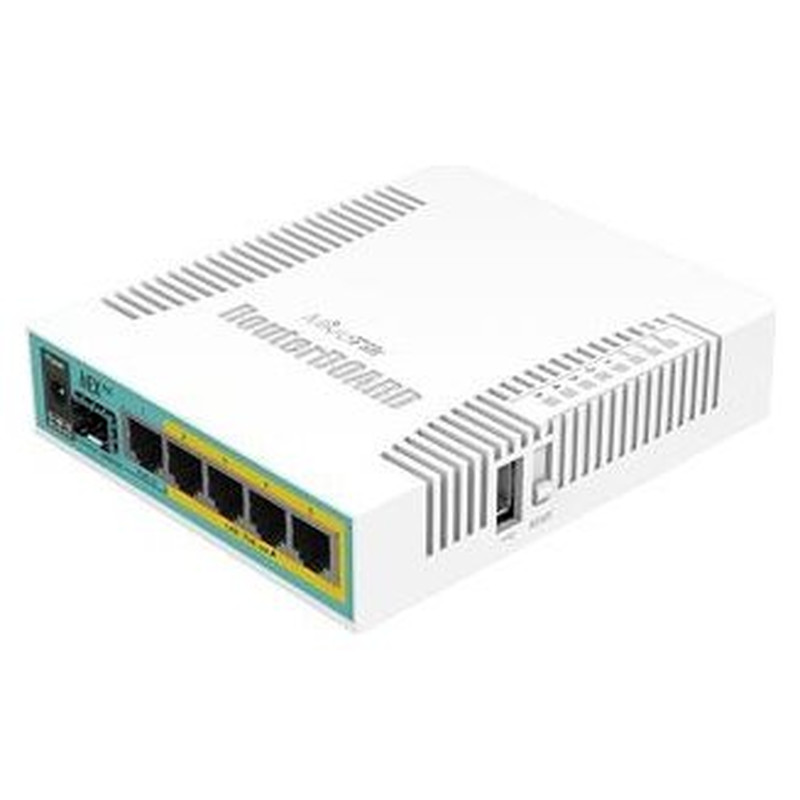

RB960PGS // RB960PGS (hEX PoE)

hEX PoE is a five port gigabit ethernet router for locations where wireless connectivity is not required. The device has a USB 2.0 port and a SFP port for adding optical fiber connectivity. The ports 2-5 can power other PoE capable devices with the same voltage as applied to the unit.

It is affordable, small and easy to use, but at the same time comes with a very powerful 800MHz CPU, capable of all the advanced configurations that RouterOS supports. Less power adapters and cables to worry about! Max current is 1A per port, Ethernet ports are shielded.

Product code
RB960PGS

CPU nominal frequency
800 MHz

CPU core count
1

Size of RAM
128 MB

10/100/1000 Ethernet ports
5

Number of USB ports
1

Power Jack
1

Supported input voltage
-12 V – 57 V direct-input power jack (5.5mm outside and 2mm inside, female, pin positive plug). 24V 2.5A power adapter included
-802.3at/af/passive PoE (first Ethernet port accepts 802.3at/af/passive PoE input 11-57V DC)

PoE out
802.3at ports 2-5 (1A maximum per port, 2A total maximum).

PoE in
802.3at (first Ethernet port accepts 802.3at/af/passive PoE input 11-57V DC)

Voltage Monitor
Yes

PCB temperature monitor
Yes

License level
4

CPU
QCA9557

Max Power consumption
9W

SFP ports
1

USB Power Reset
Yes

USB slot type
USB type A

Storage type
FLASH

Storage size
16 MB
